Residential above-ground equipment

Here are common examples of above-ground equipment found on your property when you have electric service. Planning documents and site sketches may also include the symbols used for each piece of equipment.

DB transformer

Symbol:
DB transformer symbol

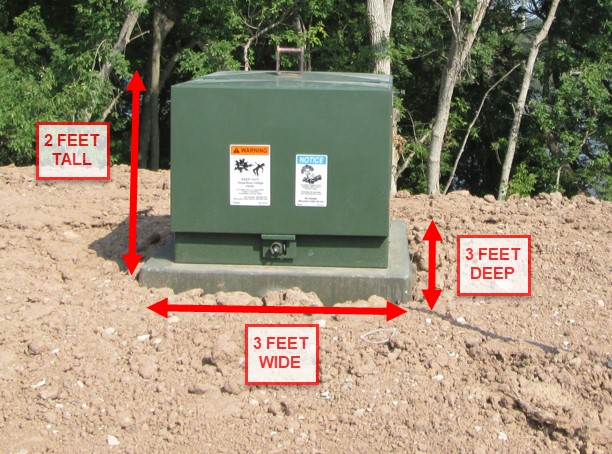

Sample picture:
DB transformer

Pedestal

Symbol:
pedestal symbol

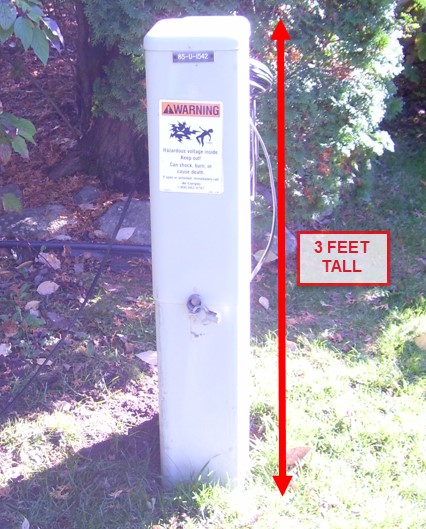

Sample picture:
pedestal

Pole

Symbol:
pole symbol

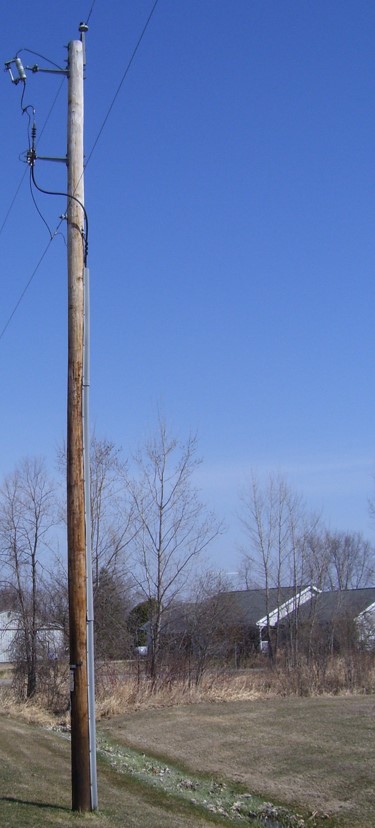

Sample picture:
pole

Anchor

Symbol:
anchor symbol

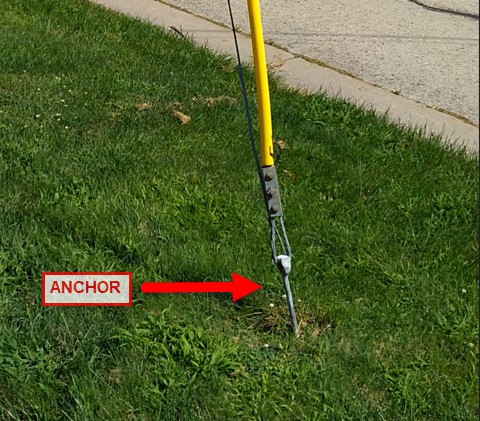

Sample picture:
anchor anchor

OH transformer

Symbol:
OH transformer symbol

Sample picture:
OH transformer

Cable – Trench

Symbol:
cable trench symbol

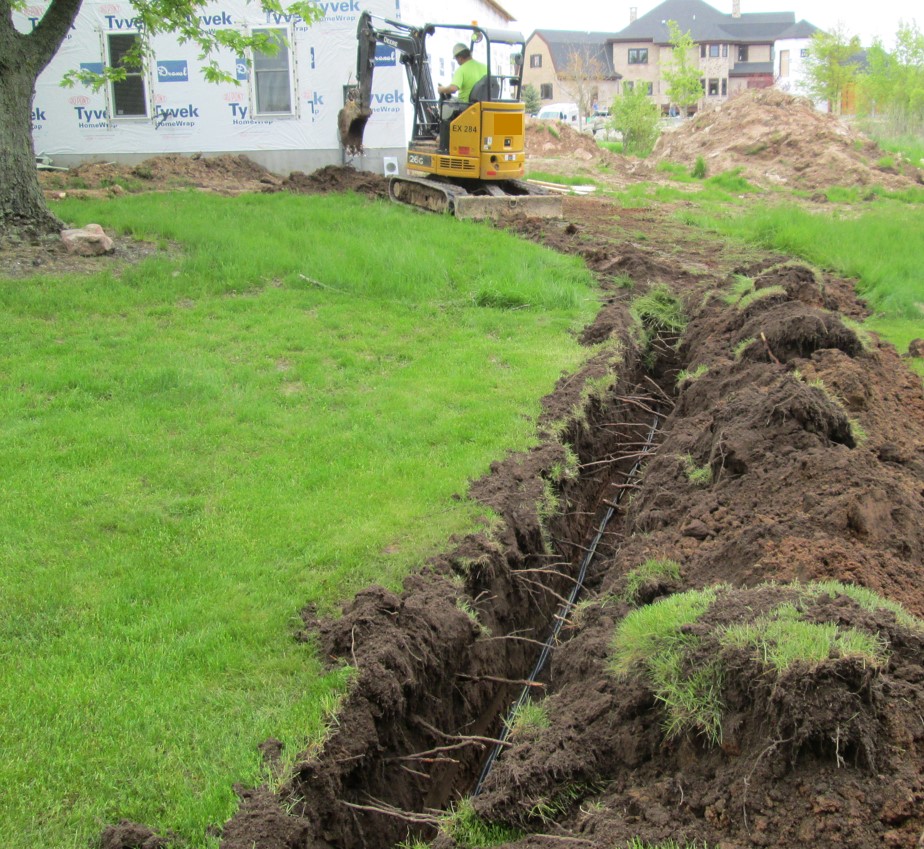

Sample picture:
cable trench

Bore pit

Symbol:
bore pit symbol

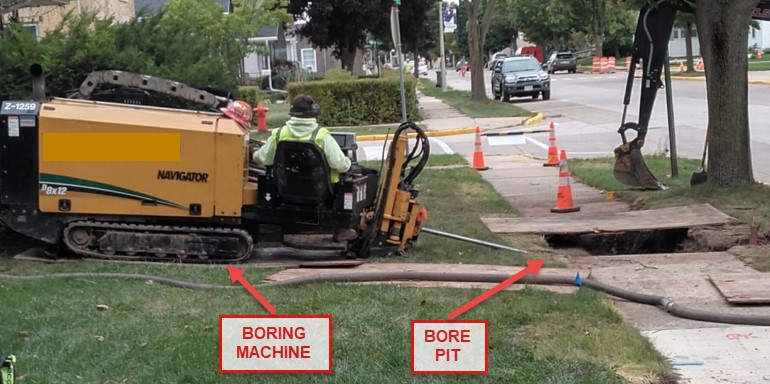

Sample picture:
bore pit
